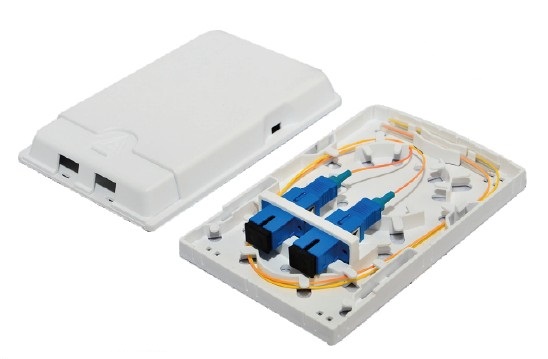

FTTx Fiber Optic Terminal Box
Description:
• With protective doors, dustproof
• Suitable for many types of modules, used in cabling work area subsystem
• Embedded type surface, easy for installation and removal
• Available for fiber optic SC simplex or LC duplex and can be used in both surface mounted
installation and concealed panel installation
• All modules are solder less mode
Application:
• Optical fiber communication system
• Fiber optic CATV, FTTH Fiber to the Home
• Optical fiber access network
• Testing instruments, fiber optical sensors
• Fiber optic patch panels, cabinet type or wall-mounted type fiber optic distribution units
Technical Data:
Item |
Parameters |
|
Scope of application |
3.0*2.0mm dropcable indoor cable |
|
Fiber Cladding Diameter |
125μm(652&657) |
|
TBF Diameter |
250μm & 900μm |
|
Application Mode |
Single mode & Multimode |
|
Tensile strength |
>50N |
|
Operating temperature |
-40～+85℃ |
|
Adapter |
SC & LC |
|
Insertion loss |
0.2dB(1310nm & 1550nm) |
.jpg)
.jpg)
