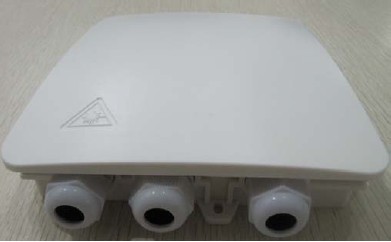

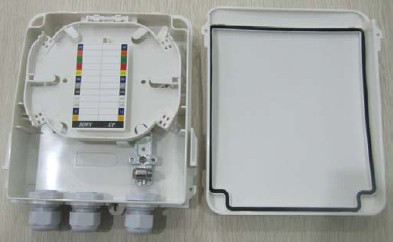

FTTx Fiber Optic Terminal Box
.jpg)
Features
• It is applicable for wall-mounted indoor or outdoor;
• It is suitable for Max capacity of 8 pieces SC adapters installation and usage;
• The Max capacity is 12 fibers for fusion of direct fusion;
• It is allowed to preinstall PLC optical splitter with the Max optical distribution ratios 1:8.It apply to various cables and fast connector;
• The protection grade is IP65.
Specifications
|
Functions: |
Cable terminal, passive splitter |
|
Splitter type: |
micro splitter |
|
Splitter installation position: |
splitter fixing bracket |
|
Adaptor type: |
SC |
|
Max ratio: |
1:8 |
|
Splice tray type: |
15# |
|
Splice tray quantity: |
1 pcs |
|
cable: |
8 figure soft cable, general outdoor cable, indoor cable |
|
Standard accessory: |
box one set |
|
Optional accessory: |
PLC splitter, SC adaptor, fast connector |
