Function

1 The box body is made of ABS+PC high quality engineering plastic material with excellent intensity.

2 With good waterproof design, the product can be applied indoor and outdoor for wall-mounted, pole-mounting.

3 With safe shaped lock, the box can be opened and closed easily.

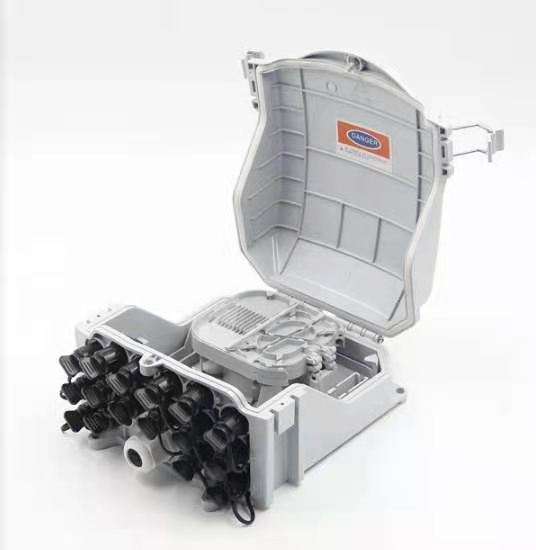

4 The splice tray is designed with flip page and double layer structure, which is easy to be installed and maintained. For this design, splice and distribution can be can separately completely, which is more reasonable for layout.

5 Protection Level:IP55

6 Should be clear marked “Line sequence sign” （If necessary, the serial number of the junction and branch should be clear marked）

     7 The angle of opening box is not less than 120°

Product dimension

240*208*117mm

Application environment

Operating temperature： -40℃～＋60℃；

Storage temperature： －25℃～＋55℃

Relative humidity：≤95%（＋30℃）

               Atmospheric pressure：62～101kPa
