SC Optical Fast Connector

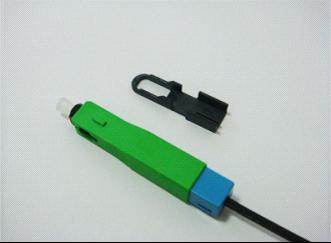

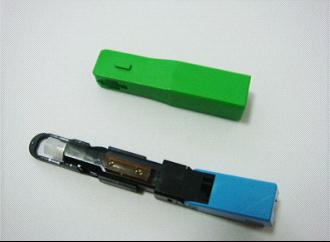

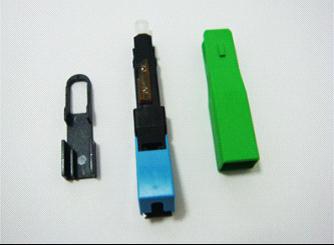

KSUN-ESC250P-APC Optical Fast Connector

KSUN-ESC250P-APC



Technical Specifications

1. DATA SHEET

ITEM

Technical Parameters

Applicable for

3.1 x 2.0 mm butterfly cable

Optical fiber diameter

125μm ( 657A & 657B

Tight buffer diameter

250μm

Fiber mode

single-mode&

Operation time

About 15s ( no fiber cut )

Insert loss

1310nm & 1550nm

Return loss

≤ 40dB

The success rate

>98%

The number of assembly

>10 次

Fastening strength of naked fiber

>5 N

Tensile strength

>50 N

Using temperature

-40~+85℃

On-line tensile strength (30 N)

△ IL IL ≤ 0.3dB

Mechanical durability (500 times)

△ IL ≤ 0.3dB

Drop-off test

△ IL ≤ 0.3dB

Application for: FTTx ,Connecting up Renovation of Computer/controlling Room.

Fast Connector, Optical Tables, AFL Fast Connector
