SC Optical Fast Connector

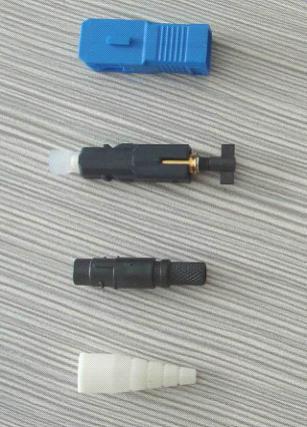

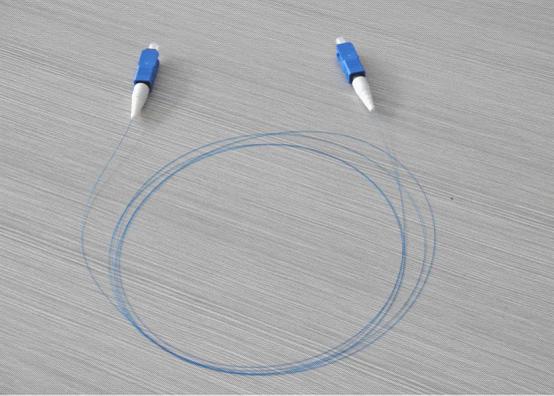

KSUN-KSC250 Optical Fast Connector

KSUN-KSC250



Technical Specifications:

DATA SHEET

ITEM

Technical Parameters

Applicable for

φ0.25 mm Fiber

Optical fiber diameter

125μm ( 652 & 657 )

Tight buffer diameter

250μm

Fiber mode

Single & multi mode

Operation time

About 60s(no fiber cut)

Insert loss

≤ 0.3dB(1310nm & 1550nm)

Return loss

≤ -40dB

Fastening strength of naked fiber

>5 N

Fastening strength of naked fiber holder

>10 N

Tensile strength

>50 N

Using temperature

-40~+75℃

On-line tensile strength (20 N)

△ IL ≤ 0.2dB △ RL ≤ 5dB

Mechanical durability (500 times)

△ IL ≤ 0.2dB △ RL ≤ 5dB

Drop-off test

△ IL ≤ 0.2dB △ RL ≤ 5dB

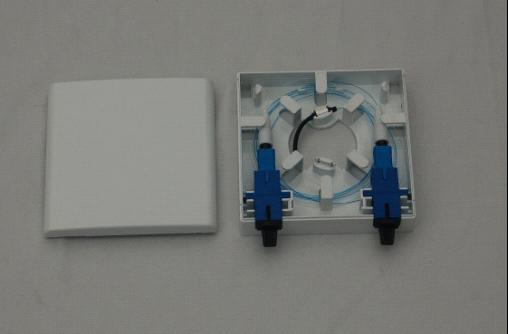

Application for:FTTx,Connectingup Renovation of Computer/controlling Room.
