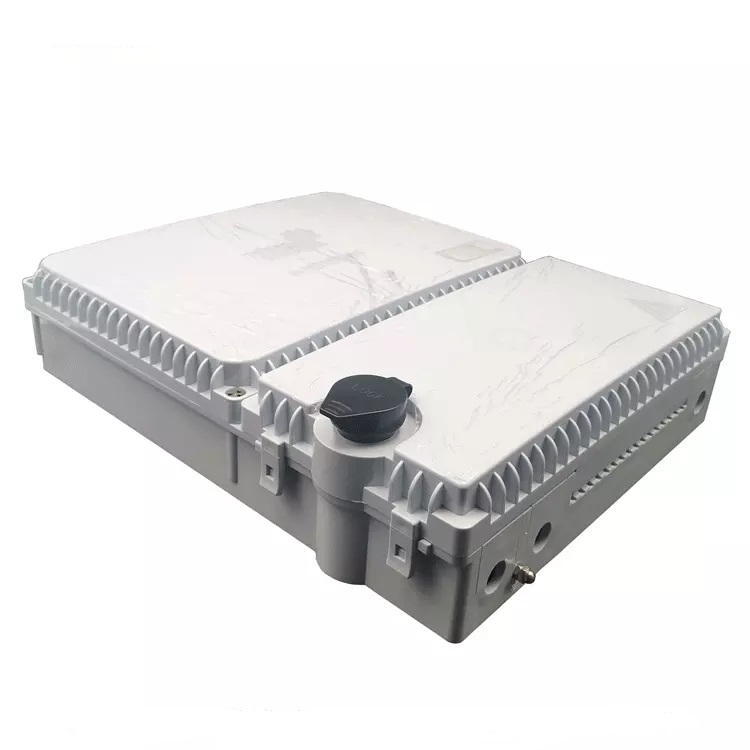

Optical Distribution Point with Solid Splitter (ODP Solid) is designed to connect to Feeder / Distribution cable to subscriber’s Drop Cable using PLC Splitter in FTTx networks. PDC ODP with Solid Splitter uses 8 to 16 core capacity SC/UPC and SC/APC, it can hold 2 pieces 1:8 Splitter to 1 piece 1:16 Splitter.
ODP has two (2) input ports and 16 output ports on the bottom.ODP Solid Splitter Box can be installed on Poles, Walls and inside the Closure Pedestal. The ambient temperature ranges from -25°C to 65°C.
- User familiar industry interface, using high impact plastic
- Can accommodate two 1x8 splitters or one 1x16 splitter
- Ultraviolet resistant and rain resistant
- Up to 16 FTTH drops
- Wall and pole mountable
- 2 inlet capacity, 16 outlet capacity
- Meets cable termination and sealing requirements
Specification
|
Outside dimension (LxWxH) |
345x275x85 (mm) |
|
|
Weight (excluding outside box) |
2.3(kgs) |
|
|
Number of inlet/outlet ports |
3 ports on the bottom side |
|
|
Diameter of fiber cable |
Φ8—Φ15 (mm) |
|
|
Maximum capacity (number of connector ports) |
8 port adaptor |
1 Splitter 1:8 |
|

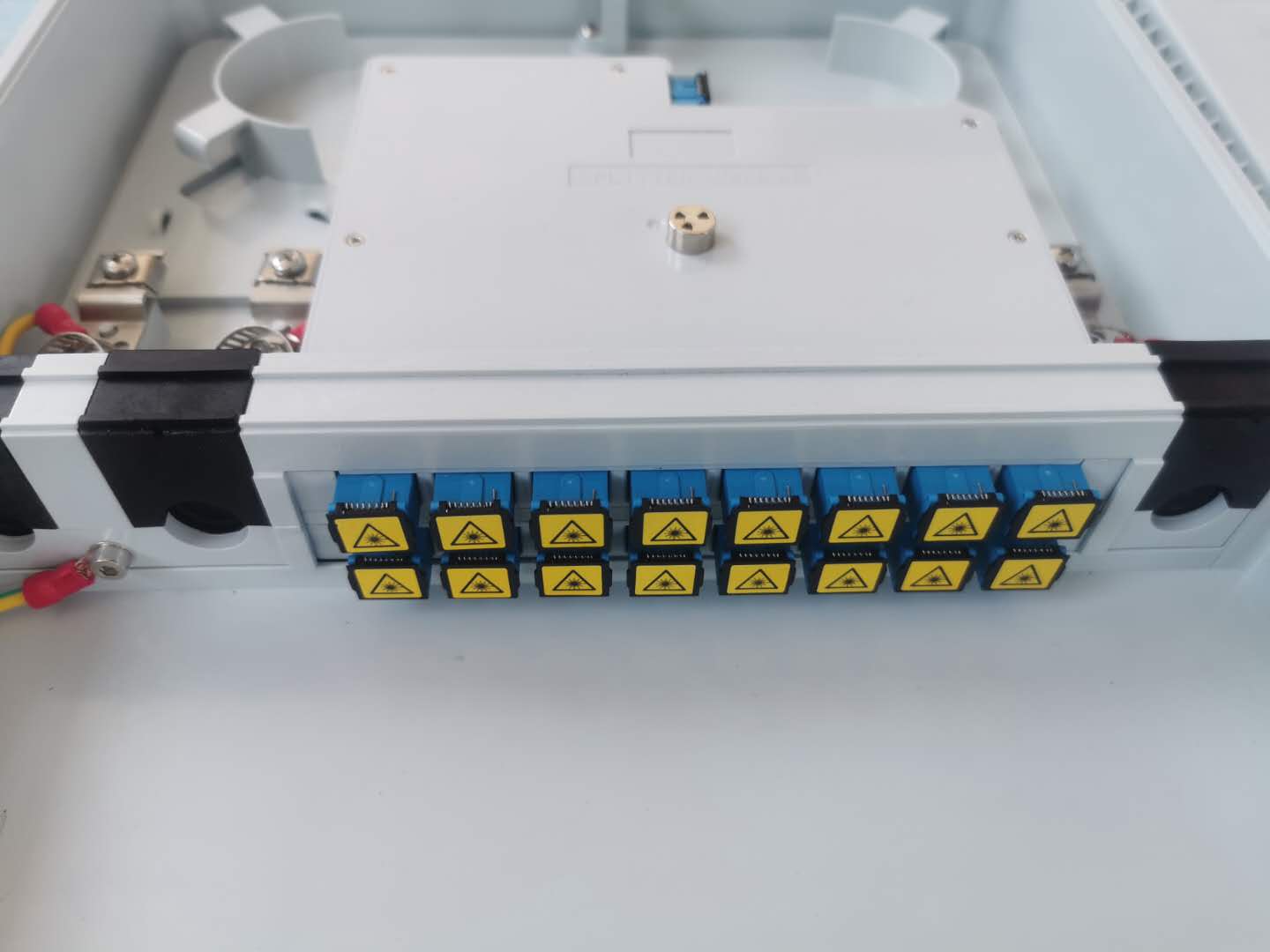

16 port adaptor |
2 Splitter (2 x 1:8) |
|

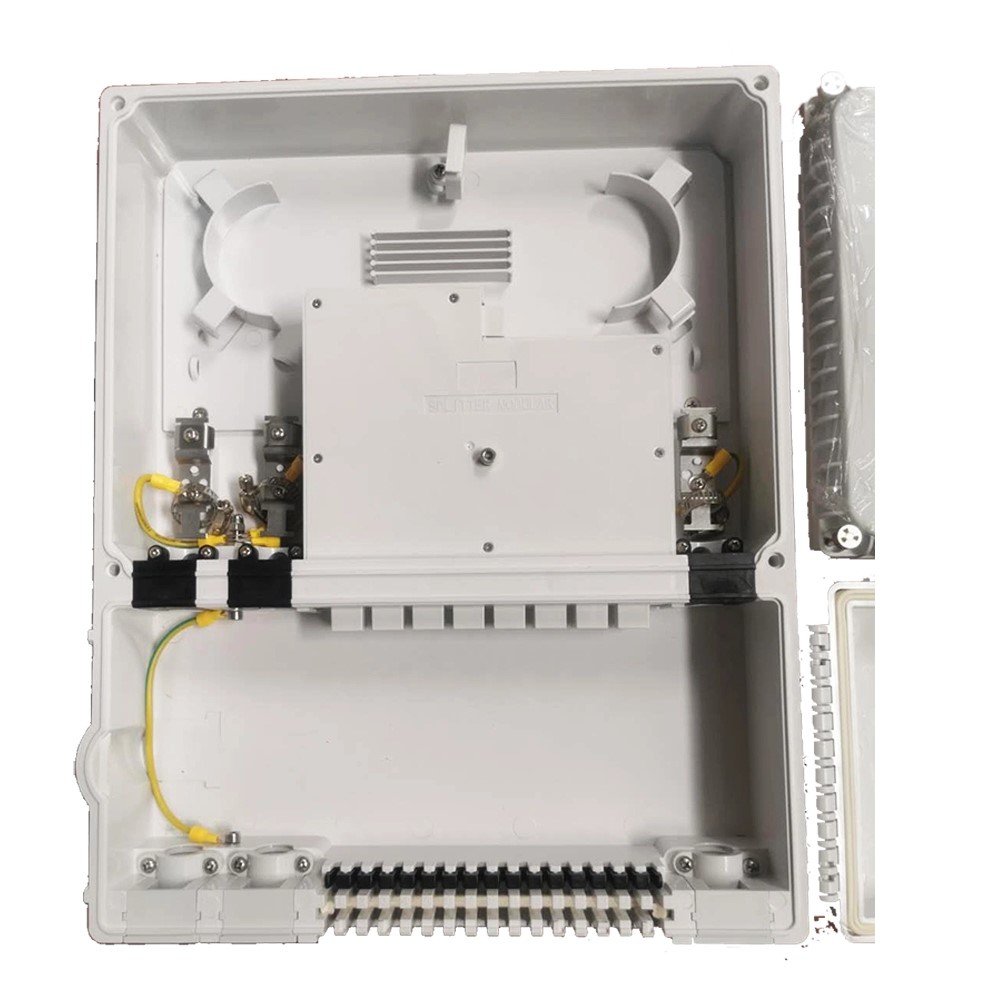

Design for Operator
|
No. |
Name of components |
Quantity |
Usage |
Remarks |
|
1 |
Housing |
1 set |
Protecting fiber cable splices in whole |
Internal diameter: 345*293 (mm) |
|
2 |
Splitter 1:8 |
8 port adaptor (1PCS) |
Terminal optical distribution |
149*140*12(mm) |
|
16 port adaptor (2PCS) |
||||
|
3 |
Fiber optic splice tray (FOST) |
1pcs |
Fixing heat shrinkable protective sleeve and holding fibers |
Suitable for: Bunchy:12(cores) |
|
4 |
Seal fitting |
1 set |
Sealing between FOSC cover and FOSC bottom |
|
|
5 |
Port plug |
1 piece |
Sealing empty ports |
|
|
6 |
Pressure testing valve |
1 set |
After injecting air it is used for pressure testing and sealing testing |
Configuration as per requirement |
|
7 |
Grounding lead-out device |
1 set |
Cable grounding |
|
