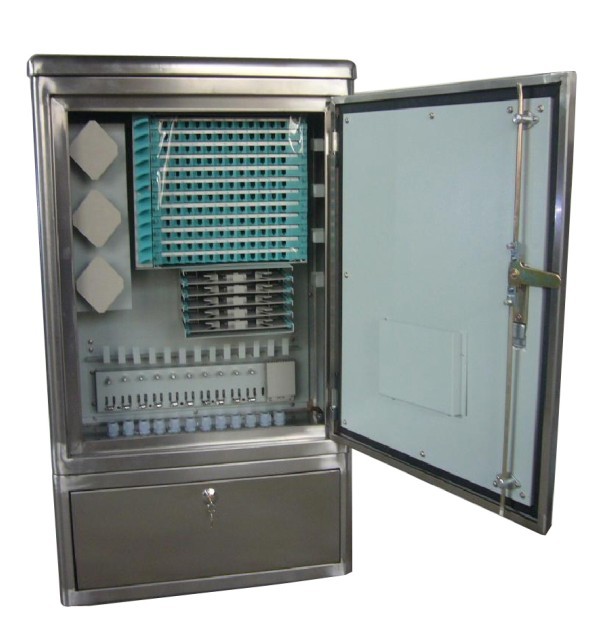

Optical Distribution Cabinet

Optical Distribution Cabinet

ODC-SO-144



Applications

• Widely used in FTTB, FTTC, FTTH, FTTN, FTTO.
• Telecommunication Networks
• CATV Networks
• Data communications Networks
• Local Area Networks

Environment condition

• Environmental temperature:-25℃~+60℃
• Relative humidity:<95%(When the temperature is below 40℃)
• Atmospheric pressure:70~106KPa
• Transportation Temperature: -40℃~+60℃
• The dew-proof, the rainproof, the dustproof and thief proof are up to YD/T988-1998 standard.

Features

• Modules design, easy installation and removal
• Doors are protected from external access through hidden hinges
• High resistivity against corrosion 19 inch mounting rails
• Front lockable door design to keep the cabinet safe, reliable and water-proof
• Rust-proof material to ensure cabinets endure climate changes and adverse environment
• Stainless Steel material, protection level reaches to IP65
• Full front operation, easy access to cables, pigtails, patch cords, adapters and splices
• Optimal management for patch cords with fiber storage units
• Suitable for ribbon and non-ribbon optical fibers

Specification

 Model

Dimension (L*W*H)

Capacity

Cable Port

Max. Cable

ODC-SO-144

660mm *320mm* 1150mm

144 Cores

12 Ports

Φ23mm
